4G Anti Cut IP68 Waterproof GPS Tracking Bracelet for Prisoner with Free Platform Offender Quarantine Patients
Basic Info. Model NO. R18 Use Hand Held Certification RoHS, ISO2000, FCC, CE Warranty 1 Year Transport Package Standard
Send your inquiryDESCRIPTION
Basic Info.
Model NO.
R18
Use
Hand Held
Certification
RoHS, ISO2000, FCC, CE
Warranty
1 Year
Transport Package
Standard Package
Specification
58mm× 42mm× 15mm
Trademark
myrope
Origin
China
HS Code
8526911000
Production Capacity
10000PCS/Week
Product Description
Wristbands for Quarantine GPS Bracelet Tracker for Prisoner Offender Parolee
1. Product Description:

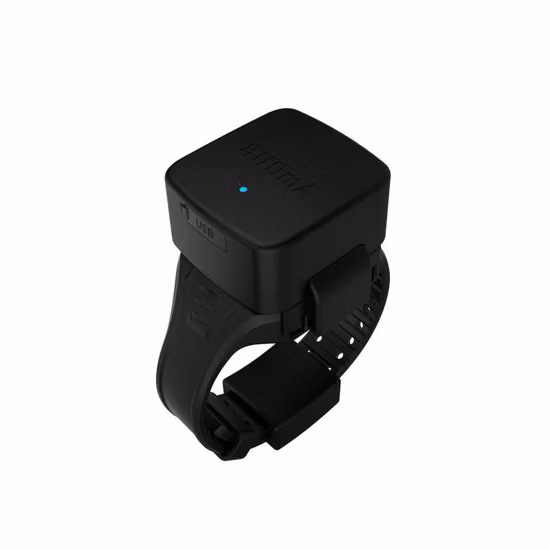

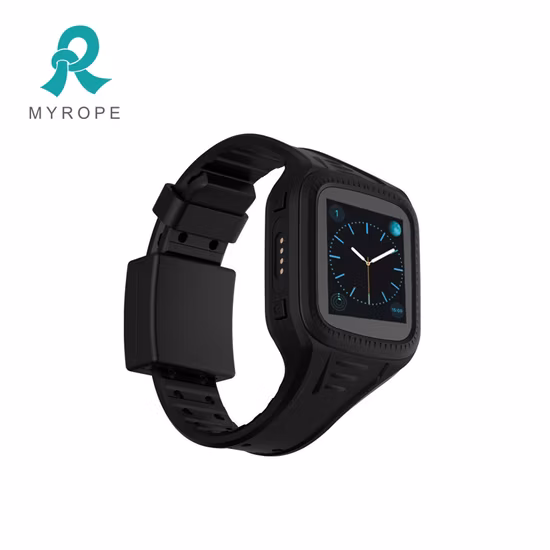

R18 is a 4G gps watch for offenders/prisoners, and it is very solid design strap tamper proof gps watch, it is not easy to break with IP68 waterproof features. When someone try to cut the strap, it is not easy to cut because it has metal layer inside the strap and it can send tamper alarm to the monitor center.
R18 is a 4G gps watch for offenders/prisoners, and it is very solid design strap tamper proof gps watch, it is not easy to break with IP68 waterproof features. When someone try to cut the strap, it is not easy to cut because it has metal layer inside the strap and it can send tamper alarm to the monitor center.
2. Features:
1) Waterproof IP68;
2) 4G LTE;
3) GPS, WIFI, LBS location;
4) Bluetooth and indoor location;
5) RFID and NFC;
6) Update data at interval 5 minutes and 10 minutes;
7) Two way call;
8) Show time;
9) Can enable emergency mode and recover to normal mode (via APP);
10) Geofence (safe zone) and alert;
11) SOS button;
12) G-sensor (save battery, if the bracelet not moves over 24 hours, trigger an alert);
13) Watchband lock (the wearer cannot take off the bracelet);
14) IR-sensor (take off alert);
15) Close the bracelet remotely;
16) Magnetic charge (it also can charge when the bracelet is wearing);
17) Low battery alert;
18) Count step;
19) Over speed alert;
20) Upload altitude data.
3. Speicifcations
| Items | Parameters |
Main: | |
| Operation System | mocor5 32bit |
| GSM/GPS Chipset | Spreadtrum 9820E (1.2GHz Dual-core ARM CortexTM A7MP processor) |
| GSM Frequency | FDD: B1 B2 B3 B4 B5 B7 B8 B12(17) B20 B28A WCDMA: Band 1\2\5\8 GSM: Band 2\3\5\8 |
| Data Rate | 2G: EDGE 3G: DC-HSPA+\4.2\2.2Mbps 4G: CAT4 |
| SIM Card | NANO |
Storage: | |
| Memory Chipset | PN614G8D2TE-B8BE0 |
| ROM | 4GByte NAND |
| RAM | 2GByte LPDDR2 |
Location: | |
| GPS Signal | L1,1575.42MHz C/A code |
| GPS Channel | 22 |
| GPS Sensitivity | Tracking: -165dBm, Acquisition: -148dBm |
| GPS Positioning Accuracy | 5-15m |
| Hot Start | <3s<> |
| Code Start | <26s<> |
| LBS Positioning Accuracy | 100-1000M |
| Wi-Fi Standard | 802.11b\802.11g\802.11n |
| Wi-Fi Positioning Accuracy | <50m<> |
| Speed Accuracy | 0.1m/s |
Others: | |
| Operating Temperature | -20ºC~70ºC |
| Humidity | 5%~95% |
| Size | 50mm×38mm×16.3mm |
| Charger | 5PIN Micro USB |
| Battery | Rechargeable lithium polymer battery 650mAh |
| Standby | >70h |
| Ringtone Format | AAC\AMR\WMA\MP3\MIDI |

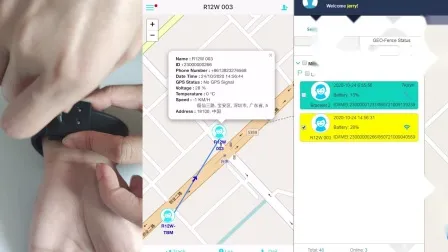

<3s<><26s<><50m<>4. Web Platform & App
Powerful Gps Tracking Platform Deployed in Cloud Cluster Server
Our company provides a web platform and mobile application. The web platform is hosted by cloud cluster server, which is consist of many servers. The advantages are:
1. The platform can host unlimited quantity of gps tracking device.
2. The server never goes down, because it has backup server.
3. The platform responses fast.
4. The platform supports customized reports and functions.
2. The server never goes down, because it has backup server.
3. The platform responses fast.
4. The platform supports customized reports and functions.
5. Company Profile
Rope Innovation is a direct manufacturer with more than 10 years of experience in the GPS tracking industry. Its headquarter locates in Shenzhen, China's most innovative city. Rope Innovation is a true innovator of high-quality GPS tracker devices and has satisfied the needs of customers from 120 countries around the world.
Within 10 years development, we had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. In order to improve the quality and safety of products and meet the requirements of various customers, we have obtained certificates such as ISO9001-2008, CCC, CE, FCC, RoHS and explosion-proof certificates.
6. Certificates
Rope Innovation is the verified supplier by Alibaba and TUV. It is well guaranteed to work with us. And our products are passed certificates of CE, ROHS and FCC.
7. Customers Feedback
FAQ:
Q: Are you manufacturer?
A: Yes, we are the manufacturer of gps tracker for more than 10 years.
Q: Do you provide platform and mobile APP?
A: Yes, we provide both. And our platform is deployed in cluster cloud server, it works safe, fast and stable.
Q: Do you provide both Android and iOS APP?
A: Yes, we provide both.
Q: What's the warranty?
A: We provide one year warranty to all our products.
Q: Do you have certificates?
A: Yes, our factory passed ISO9001 and our products passed CE, ROHS, FCC.
Q: What's the minimum order quantity?
A: 1 pc.
Q: What's the payment methods?
A: T/T bank, Paypal, Western Uinon, Credit Card.
