DESCRIPTION

Basic Info

Model NO.	XLB-D/Q
Packaging	Wood Carton
Brand	Maoyuanfeng
Electronics	World Famous Brand
Transport Package	Wood Carton
Trademark	MYF
Origin	China
Production Capacity	190 Units

Product Description

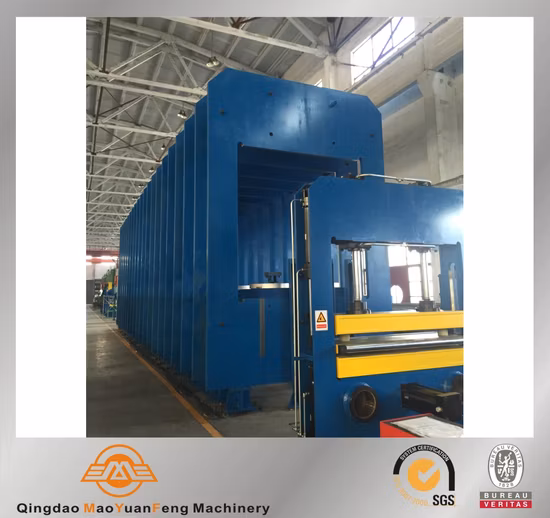

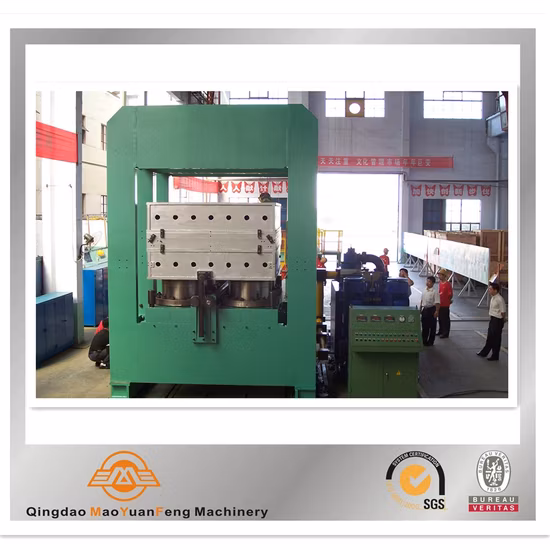

Product Profile: This machine is used for pressing all kinds of rubber model products and thermosetting plastic like as related specifications sealing products, projected rubber, rubber plate and so on. These series products have advantages of big unit area pressure to guarantee quality of products. We also can provide push pull mold device according to technique request of rubber products to decease labor strength. Also we can provide hand control and electric controI, PLC control as customer's request.Our Machine Advantage:1. Automatic plate vulcanizing machine, automatically rise, automatic exhaust, automatic fall, curing time, then the function of alarm and automatically open mold, improve production efficiency2. Curing time, air exhaust quantity, air exhaust time and other process parameters can be set in a convenient time, and has the automatic pressure function.3. Electrical PLC control, convenient, accurate, and correctSpecification:

Model	XLB- D/Q350×350	XLB- D/Q400×400	XLB- D/Q500×500	XLB-D/Q600×600	XLB-D/Q700×700
Total pressure(MN)	0.25	0.50	0.60	1.0	1.60
Hot plate size(mm)	350×350	400×400	500×500	600×600	700×700
Hot plates distance(mm)	125	125	150	150	150
Working layer	2	2	2	2	2
Max hydraulic pressure	16	16	20	16	16
Hot plate unitpressure(Kg/c)	20.4	31.25	25.2	28	24.4
Plunger stroke(mm)	152	200	200	300	360
Heating method	Steam/oil/electricity	Steam/oil/electricity	Steam/oil/electricity	Steam/oil/electricity	Steam/oil/electricity
Each hot plate heating power(KW)	2	3	3	4.2	4.8
Operation method	Manual/Auto	Manual/Auto	Manual/Auto	Manual/Auto	Manual/Auto
Motor Power(KW)	2.2	2.2	2.2	3	4

FQA-Problems of customer concern:About machine performance quality1. Q: How to guarantee the quality of outsourcing parts? A: First choice more than 2 suppler by tender, There are strict system and process for inspecting outsourcing parts. And there are outsourcing inspectors, after inspection, qualified goods, labeling and storage. Not qualified, return.2. Q: Which brand of electric part? A: Use world famous brands, Siemens, Omron, Toshiba, ABBCustomer can specify the brand.3. Q: Which PLC? A: Siemens, Omron, Mitsubishi4. Q: How to control the quality? A: There are inspectors for inspecting equipment quality and performance, after assembly, machine run continuously for at least 12 hours at one time, Total running time should be not less than 48 hours.About installation1. Q: When the guide engineer arrive at customer's factory? A: If need installation on site, engineer will arrive at factory within one week after machine arrived at factory.About after-sales service1. Q: What is the warranty time? A: 2 years after machine arrived at factory2. Q: How to solve the problem? A: Within one hour after getting customer' problem, inform the solution way, there are three ways for different conditions. 1, Which can be solved by phone or Email, it will be solved in two hours. 2. Which can be solved by Remote Control, it will be solved within four hours(machine is equipped by Remote Network Control Problem). 3. Which need solve it on site, engineer arrive at factory within one week(in the two years warranty date, engineer has the visa any time of the country where the machine.

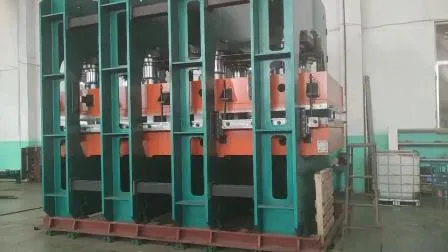

Machine Assembly at our factory:

Machine Running at Customer' factory:

Foreign Customers Visit:
